HYDROZONE SYSTEM

The Hidrozone System is an automatic water treatment system which does not need the addition of any chemical disinfectants such as chlorine or bromine in any form (liquid, tablets or granules).

It is a fully automated system that keeps the pool water in optimal condition at all times.

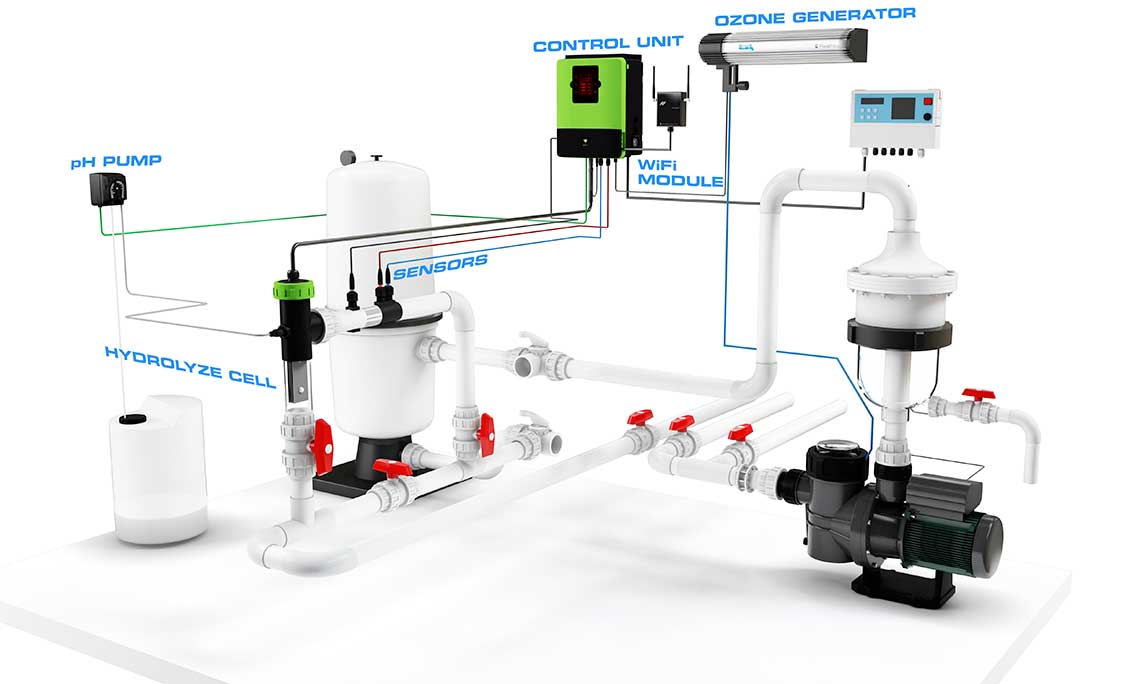

It consists of a Hydrolysis device that produces continuously the disinfectant agents (O2, H2O2, OH) directly from the water conductivity (1000 uS) and an Ozone Generator that produces continuously up to 1g/m3/h Ozone (O3) from air. The hydrolysis device comes equipped with a flow sensor, a pH probe, a Redox probe, a pH controller and dispenser; optional are available temperature sensor and conductivity sensor.

The Ozone Generator produces ozone from the air and injects it into the pool water. The Ozone is a powerful oxidant that eliminates bacteria and viruses and it eliminate odors and flavors that water may have. The Ozone it transforms into oxygen after the disinfection process.

The Hidrozone system does not use any aditional chemicals and does not leave any chemical residue in the pool water.

The maintenance of the device is minimal since the device is fully automated.

The installation and setup of the equipment is simple and easily accomplished in any installation. The modular form of the device sustains the possibility to adapt it to any environment.

The Hidrozone System is in Patent Pending status with the number:: US 2016/0122210 A1
